Morse Taper Standard

 The Morse Taper system was first introduced by the Morse Twist Drill and Machine Company and was based upon a taper-per-foot of 5/8 inch. In actuality, none of the Morse Tapers are exactly .62500 per foot, but rather range from .59858 to .62565 taper-per-foot. Stark Industrial standard centers are made of bearing quality 52100 steel, heat treated to 60 - 64 Rc, and guaranteed to have .0002 or less total-indicator-runout. Also available are standard carbide tipped centers with 52100 steel shanks hardened to 45 - 50 Rc.

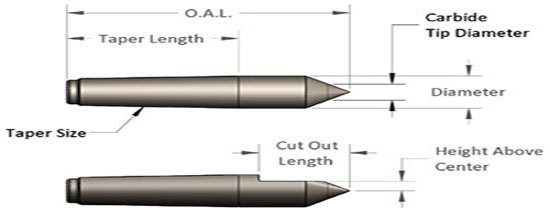

Taper Size OAL Taper Length Diameter Carbide Tip Dia Height Above Center Length of Cut Out
1 3-5/16 2-1/8 .475 1/4 5/32 1 More Info


Morse Standard Taper - Size 1

Type Part Number Weight
52100 Steel Full 44101 2.36
52100 Steel Half 45101 2.79
Carbide Tipped Full 46101 2.24
Carbide Tipped Half 47101 2.23
2 4-3/16 2-9/16 .700 3/8 7/32 1-3/8 More Info


Morse Standard Taper - Size 2

Type Part Number Weight
52100 Steel Full 44102 2.58
52100 Steel Half 45102 2.83
Carbide Tipped Full 46102 2.64
Carbide Tipped Half 47102 2.61
3 5-1/4 3-3/16 .938 1/2 9/32 1-11/16 More Info


Morse Standard Taper - Size 3

Type Part Number Weight
52100 Steel Full 44103 3.22
52100 Steel Half 45103 3.08
Carbide Tipped Full 46103 3.16
Carbide Tipped Half 47103 3.11
4 6-3/4 4-1/16 1.231 1/2 9/32 2-1/4 More Info


Morse Standard Taper - Size 4

Type Part Number Weight
52100 Steel Full 44104 4.19
52100 Steel Half 45104 3.98
Carbide Tipped Full 46104 4.18
Carbide Tipped Half 47104 4.08
5 8-1/2 5-3/16 1.748 5/8 11/32 2-3/4 More Info


Morse Standard Taper - Size 5

Type Part Number Weight
52100 Steel Full 44105 6.97
52100 Steel Half 45105 4.56
Carbide Tipped Full 46105 7.00
Carbide Tipped Half 47105 6.75
6 11-1/2 7-1/4 2.494 7/8 15/32 3-1/2 More Info


Morse Standard Taper - Size 6

Type Part Number Weight
52100 Steel Full 44106 15.13
52100 Steel Half 45106 13.81
Carbide Tipped Full Part Number 0.00
Carbide Tipped Half Part Number 0.00
7 15 10 3.270 7/8 15/32 4 More Info


Morse Standard Taper - Size 7

Type Part Number Weight
52100 Steel Full 44107 18.56
52100 Steel Half 45107 16.91
Carbide Tipped Full Part Number 0.00
Carbide Tipped Half Part Number 0.00
