Morse Taper Large Diameter Carbide

 The Morse Taper system was first introduced by the Morse Twist Drill and Machine Company and was based upon a taper-per-foot of 5/8 inch. In actuality, none of the Morse Tapers are exactly .62500 per foot, but rather range from .59858 to .62565 taper-per-foot. Stark Industrial large diameter carbide centers are made of bearing quality 52100 steel, with the shank being heat treated to 40 - 45 Rc, and guaranteed to have .0002 or less total-indicator-runout.

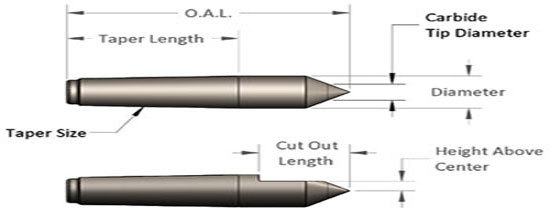

Taper Size OAL Taper Length Diameter Carbide Tip Dia Height Above Center Length of Cut Out
2 4-3/16 2-9/16 .875 5/8 7/32 1-3/8 More Info


Morse Taper Large Diameter Carbide - Size 2

Type Part Number Weight
Carbide Tipped Full 46302 2.72
Carbide Tipped Half 47302 2.69
3 5-1/4 3-3/16 1.188 7/8 9/32 1-11/16 More Info


Morse Taper Large Diameter Carbide - Size 3

Type Part Number Weight
Carbide Tipped Full 46303 3.34
Carbide Tipped Half 47303 3.28
4 6-3/4 4-1/16 1.625 1-1/4 9/32 2-1/4 More Info


Morse Taper Large Diameter Carbide - Size 4

Type Part Number Weight
Carbide Tipped Full 46304 4.55
Carbide Tipped Half 47304 4.43
5 8-1/2 5-3/16 1.748 1-1/4 11/32 2-3/4 More Info


Morse Taper Large Diameter Carbide - Size 5

Type Part Number Weight
Carbide Tipped Full 46305 7.40
Carbide Tipped Half 47305 7.13
