Morse Taper Extended Length

 The Morse Taper system was first introduced by the Morse Twist Drill and Machine Company and was based upon a taper-per-foot of 5/8 inch. In actuality, none of the Morse Tapers are exactly .62500 per foot, but rather range from .59858 to .62565 taper-per-foot. Stark Industrial extended length centers are made of bearing quality 52100 steel, heat treated to 60 - 64 Rc, and guaranteed to have .0002 or less total-indicator-runout. Also available are standard carbide tipped centers with 52100 steel shanks hardened to 45 - 50 Rc.

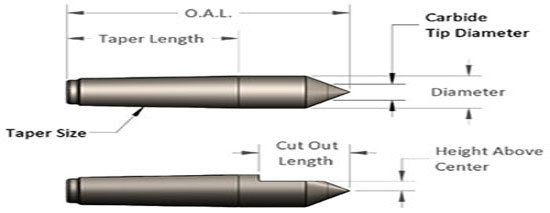

Taper Size OAL Taper Length Diameter Carbide Tip Dia Height Above Center Length of Cut Out
2 5-3/16 2-9/16 .700 3/8 7/32 1-3/8 More Info


Morse Taper Extended Length - Size 2

Type Part Number Weight
52100 Steel Full 44202 2.78
52100 Steel Half 45202 2.75
Carbide Tipped Full 46202 2.76
Carbide Tipped Half 47202 2.73
2 6-3/16 2-9/16 .700 3/8 7/32 1-3/8 More Info


Morse Taper Extended Length - Size 2

Type Part Number Weight
52100 Steel Full 44212 2.94
52100 Steel Half 45212 2.90
Carbide Tipped Full 46212 2.92
Carbide Tipped Half 47212 2.88
2 7-3/16 2-9/16 .700 3/8 7/32 1-3/8 More Info


Morse Taper Extended Length - Size 2

Type Part Number Weight
52100 Steel Full 44222 3.06
52100 Steel Half 45222 3.01
Carbide Tipped Full 46222 3.00
Carbide Tipped Half 47222 2.95
3 6-1/4 3-3/16 .938 1/2 9/32 1-11/16 More Info


Morse Taper Extended Length - Size 3

Type Part Number Weight
52100 Steel Full 44203 3.30
52100 Steel Half 45203 3.24
Carbide Tipped Full 46203 3.40
Carbide Tipped Half 47203 3.33
3 7-1/4 3-3/16 .938 1/2 9/32 1-11/16 More Info


Morse Taper Extended Length - Size 3

Type Part Number Weight
52100 Steel Full 44213 3.60
52100 Steel Half 45213 3.52
Carbide Tipped Full 46213 3.64
Carbide Tipped Half 47213 3.56
3 8-1/4 3-3/16 .938 1/2 9/32 1-11/16 More Info


Morse Taper Extended Length - Size 3

Type Part Number Weight
52100 Steel Full 44223 3.84
52100 Steel Half 45223 4.93
Carbide Tipped Full 46223 3.88
Carbide Tipped Half 47223 3.79
4 7-3/4 4-1/16 1.231 1/2 9/32 2-1/4 More Info


Morse Taper Extended Length - Size 4

Type Part Number Weight
52100 Steel Full 44204 4.62
52100 Steel Half 45204 4.49
Carbide Tipped Full 46204 4.58
Carbide Tipped Half 47204 4.46
4 8-3/4 4-1/16 1.231 1/2 9/32 2-1/4 More Info


Morse Taper Extended Length - Size 4

Type Part Number Weight
52100 Steel Full 44214 4.88
52100 Steel Half 45214 4.74
Carbide Tipped Full 46214 4.98
Carbide Tipped Half 47214 4.84
4 9-3/4 4-1/16 1.231 1/2 9/32 2-1/4 More Info


Morse Taper Extended Length - Size 4

Type Part Number Weight
52100 Steel Full 44224 5.34
52100 Steel Half 45224 5.22
Carbide Tipped Full 46224 5.40
Carbide Tipped Half 47224 5.23
5 9-1/2 5-3/16 1.748 5/8 11/32 2-3/4 More Info


Morse Taper Extended Length - Size 5

Type Part Number Weight
52100 Steel Full 44205 7.84
52100 Steel Half 45205 7.55
Carbide Tipped Full 46205 7.72
Carbide Tipped Half 47205 7.44
5 10-1/2 5-3/16 1.748 5/8 11/32 2-3/4 More Info


Morse Taper Extended Length - Size 5

Type Part Number Weight
52100 Steel Full 44215 8.42
52100 Steel Half 45215 8.10
Carbide Tipped Full 46215 8.44
Carbide Tipped Half 47215 8.12
5 11-1/2 5-3/16 1.748 5/8 11/32 2-3/4 More Info


Morse Taper Extended Length - Size 5

Type Part Number Weight
52100 Steel Full 44225 9.08
52100 Steel Half 45225 8.73
Carbide Tipped Full 46225 9.10
Carbide Tipped Half 47225 8.75
