Jarno Taper Large Diameter Carbide

Jarno Tapers were introduced by the Brown & Sharpe Manufacturing Company. All Jarno Tapers have a taper-per-foot of .60000 exactly. Stark Industrial extended length centers are made of bearing quality 52100 steel, with the shank being heat treated to 40 - 45 Rc, and guaranteed to have .0002 or less total-indicator-runout.

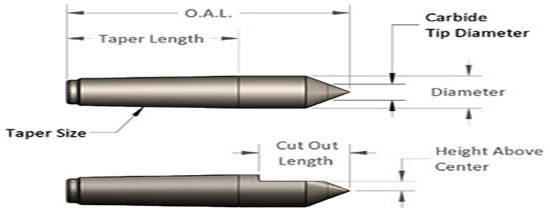

Taper Size OAL Taper Length Diameter Carbide Tip Dia Height Above Center Length of Cut Out
7 5-1/4 3-1/2 .875 5/8 7/32 1-3/16 More Info


Jarno Taper Large Diameter Carbide - Size 7

Type Part Number Weight
Carbide Tipped Full 46322 3.06
Carbide Tipped Half 47322 3.04
8 6 4 1.188 7/8 9/32 1-5/8 More Info


Jarno Taper Large Diameter Carbide - Size 8

Type Part Number Weight
Carbide Tipped Full 46323 3.58
Carbide Tipped Half 47323 3.51
9 6-3/4 4-1/2 1.188 7/8 9/32 1-7/8 More Info


Jarno Taper Large Diameter Carbide - Size 9

Type Part Number Weight
Carbide Tipped Full 46324 4.38
Carbide Tipped Half 47324 4.27
10 7-1/2 5 1.625 1-1/4 9/32 2 More Info


Jarno Taper Large Diameter Carbide - Size 10

Type Part Number Weight
Carbide Tipped Full 46325 5.04
Carbide Tipped Half 47325 4.89
11 8-1/4 5-1/2 1.625 1-1/4 9/32 2 More Info


Jarno Taper Large Diameter Carbide - Size 11

Type Part Number Weight
Carbide Tipped Full 46326 6.82
Carbide Tipped Half 47326 6.58
12 9 6 1.625 1-1/4 11/32 2-1/4 More Info


Jarno Taper Large Diameter Carbide - Size 12

Type Part Number Weight
Carbide Tipped Full 46327 6.32
Carbide Tipped Half 47327 6.11
13 9-3/4 6-1/2 1.625 1-1/4 11/32 2-1/2 More Info


Jarno Taper Large Diameter Carbide - Size 13

Type Part Number Weight
Carbide Tipped Full 46328 7.79
Carbide Tipped Half 47328 7.51
14 10-1/2 7 1.750 1-1/4 11/32 3 More Info


Jarno Taper Large Diameter Carbide - Size 14

Type Part Number Weight
Carbide Tipped Full 46329 8.38
Carbide Tipped Half 47329 8.07
