Bull & Pipe Nose Centers

Our Bull & Pipe Nose Morse taper centers are used in large diameter holding applications. Pipe Nose centers are ground to a point, whereas Bull Nose centers are truncated and have a nose diameter. Stark Industrial Bull & Pipe Nose Morse taper centers are made of bearing quality 52100 steel and the shank is heat treated to 40 - 45 Rc. With over 40 years of experience, Stark Industrial can confidently guarantee that our Morse taper centers will have .0002 or less total-indicator-run out. Our Bull and Pipe Nose Morse taper centers are available in a variety of sizes, check out our selection today!

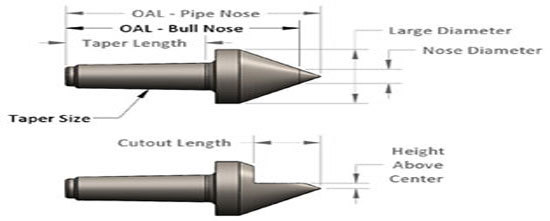

Taper Size OAL Bull OAL Pipe Taper Length Large Diameter Nose Diameter Height Above Center Length of Cut Out
1 4.52 5.06 2-1/8 2.375 .625 7/32 1-3/4 More Info


Bull Pipe Nose Centers - Size 1

Type Part Number Weight
Bull Nose Full 33101 3.70
Bull Nose Half 33201 3.30
Pipe Nose Full 34101 3.92
Pipe Nose Half 34201 3.17
2 4.95 5.49 2-9/16 2.375 .625 7/32 1-3/4 More Info


Bull Pipe Nose Centers - Size 2

Type Part Number Weight
Bull Nose Full 33102 4.03
Bull Nose Half 33202 3.50
Pipe Nose Full 34102 4.22
Pipe Nose Half 34202 3.35
3 5.77 6.63 3-3/16 2.750 1 9/32 2 More Info


Bull Pipe Nose Centers - Size 3

Type Part Number Weight
Bull Nose Full 33103 5.29
Bull Nose Half 33203 4.81
Pipe Nose Full 34103 5.54
Pipe Nose Half 34203 4.53
4 6.71 7.57 4-1/16 2.750 1 9/32 2 More Info


Bull Pipe Nose Centers - Size 4

Type Part Number Weight
Bull Nose Full 33104 6.32
Bull Nose Half 33204 5.87
Pipe Nose Full 34104 6.31
Pipe Nose Half 34204 5.49
5 8.6 9.47 5-3/16 3.500 1 11/32 2-1/2 More Info


Bull Pipe Nose Centers - Size 5

Type Part Number Weight
Bull Nose Full 33105 10.73
Bull Nose Half 33205 10.29
Pipe Nose Full 34105 10.93
Pipe Nose Half 34205 9.47
