Brown & Sharpe Taper Large Diameter Carbide

Brown & Sharpe Tapers were introduced by the Brown & Sharpe Manufacturing Company and have a nominal taper-per-foot of 1/2 inch. In reality, the tapers are not exact to the specification, but range in size from .49973 to .51612 taper-per-foot. Stark Industrial large diameter carbide centers are made of bearing quality 52100 steel, with the shank being heat treated to 40 - 45 Rc, and guaranteed to have .0002 or less total-indicator-runout.

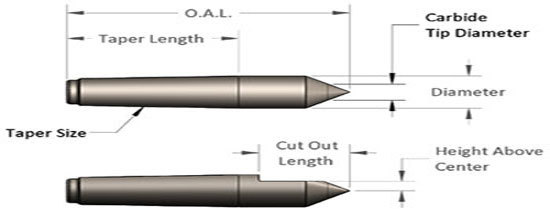

Taper Size OAL Taper Length Diameter Carbide Tip Dia Height Above Center Length of Cut Out
7 4-3/8 2-7/8 .875 5/8 7/32 1-1/8 More Info


Brown Sharpe Taper Large Diameter Carbide - Size 7

Type Part Number Weight
Carbide Tipped Full 46310 2.74
Carbide Tipped Half 47310 2.71
8 5-7/16 3-9/16 1.188 7/8 9/32 1-3/8 More Info


Brown Sharpe Taper Large Diameter Carbide - Size 8

Type Part Number Weight
Carbide Tipped Full 46311 3.56
Carbide Tipped Half 47311 3.49
9 6-1/2 4-1/4 1.188 7/8 9/32 2 More Info


Brown Sharpe Taper Large Diameter Carbide - Size 9

Type Part Number Weight
Carbide Tipped Full 46312 3.90
Carbide Tipped Half 47312 3.81
10 7-7/8 5 1.625 1-1/4 9/32 2-1/4 More Info


Brown Sharpe Taper Large Diameter Carbide - Size 10

Type Part Number Weight
Carbide Tipped Full 46313 5.30
Carbide Tipped Half 47313 5.14
10C 8-9/16 5-11/16 1.625 1-1/4 9/32 2-1/4 More Info


Brown Sharpe Taper Large Diameter Carbide - Size 10C

Type Part Number Weight
Carbide Tipped Full 46314 5.56
Carbide Tipped Half 47314 5.39
11 9-5/16 5-15/16 1.625 1-1/4 11/32 2-1/2 More Info


Brown Sharpe Taper Large Diameter Carbide - Size 11

Type Part Number Weight
Carbide Tipped Full 46315 7.12
Carbide Tipped Half 47315 6.87
11C 10-1/8 6-3/4 1.625 1-1/4 11/32 2-1/2 More Info


Brown Sharpe Taper Large Diameter Carbide - Size 11C

Type Part Number Weight
Carbide Tipped Full 46316 8.69
Carbide Tipped Half 47316 8.36
12 11-1/8 7-1/8 1.797 1-1/4 11/32 3-1/4 More Info


Brown Sharpe Taper Large Diameter Carbide - Size 12

Type Part Number Weight
Carbide Tipped Full 46317 9.38
Carbide Tipped Half 47317 9.02
